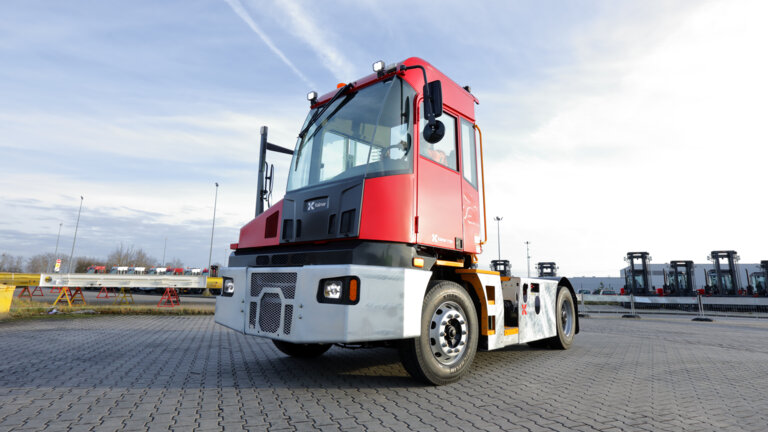

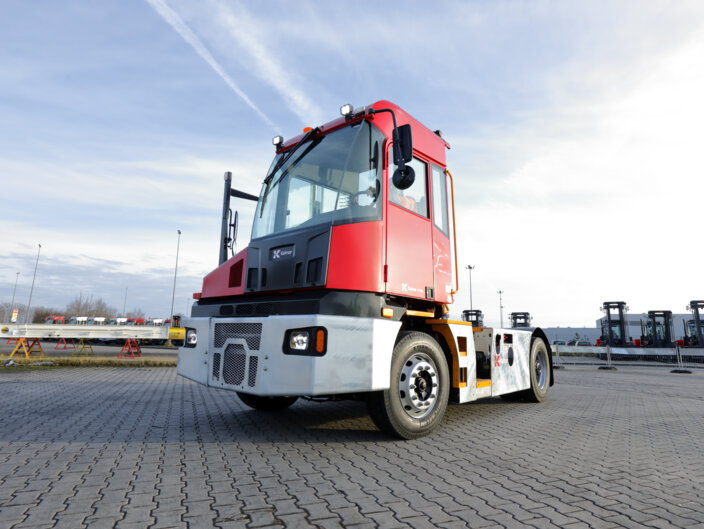

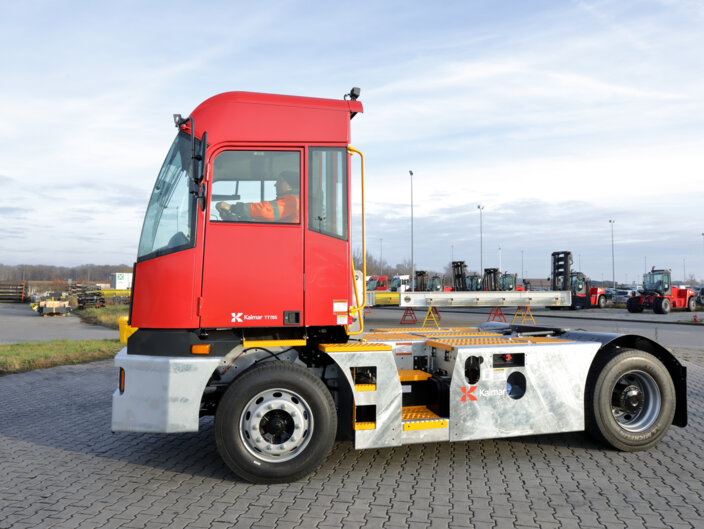

The Kalmar TT7 shunter, engineered to deliver.
We’ve listened to your needs and transformed our offering to create the TT7 — a terminal tractor specifically designed and engineered for the demanding European market. Built to be the backbone of your operations, this shunt truck will move and shunt your trailers without missing a beat.
Technical information
| Feature | Specification | Benefit |
| Driveline | 4x2 Medium Terminal Tractor | Optimised for high-cycle European shunting |

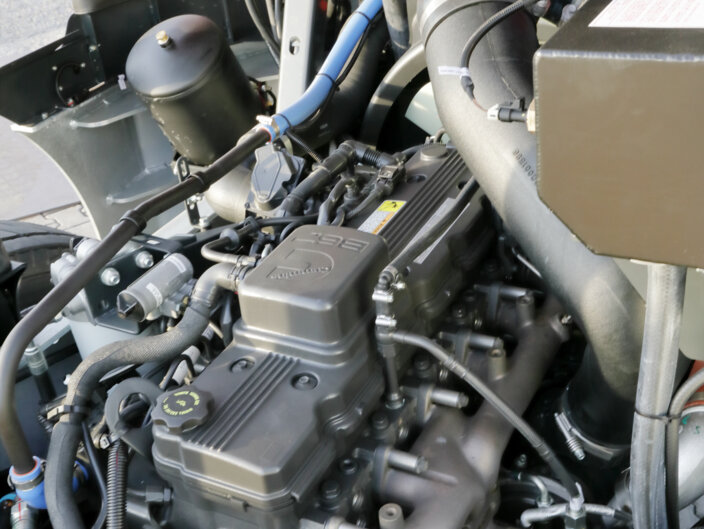

| Engine | Cummins B6.7 (EU stage 5) | HVO100 compatible for up to 90% CO2 reduction |
| Transmission | Allison 3000RDS | Proven reliability in stop-start environments |
| Gross Weight (GCW) | 70 000kg, 85 000kg, 95 000kg | Verstility to handle medium to heavy loads |
| Wheelbase | 3250mm or 3450mm | Choice of agility or stability for your yard layout |
| Lifting Height | 430mm | Standardised for efficient trailer coupling |
| Axles | Heavy-duty Kalmar Axles | Reinforced standard to handle heaviest loads |
The TT7 Terminal Tractor is built to last with:
- Maximum Durability: a completely new, heavy-duty galvanised steel frame ensures long-term structural integrity.
- Reinforced Strength: heavy-duty reinforced axles are standard across the entire range to handle your heaviest loads.
- Corrosion Protection: galvanised metal side panels provide extra defence against the elements and extreme temperatures.
- Rapid Repair: a new three-section front bumper allows for quick, cost-effective replacement of individual parts.
Build the shunter that is right for your business
With the Kalmar TT7 Medium 4x2 Terminal Tractor you get to choose which model is right for you. There are three different models, with two different energy levels, four different lifting capacities and two different wheelbases and a large range of options, allowing you to build the truck that is just right for your business.
| Models | Engine Power (kW) | GCW (kg) | Lifting (kg) | Wheelbase (WB) | Width (W) |
| TT770 | 129 @ 2200 rpm | 70,000 | 20,000 | 3450 mm | 2500mm |
| TT785 | 168 @ 2200 rpm | 85,000 | 28,000 | 3450 mm | 2500mm |
| TT795 | 168 @ 2200 rpm | 95,000 | 32,000* | 3200 mm | 2500mm |
*Lifting capacity 36,000 kg as an option.
Interested? Speak to your sales team now.
A shunter with premium standards
Experience a new level of performance with high-end features now fitted as standard on every model with:
- Superior Braking: significantly smoother braking systems enhance load safety and driver confidence.
- Precise Control: improved steering and more responsive acceleration keep your operations moving seamlessly.
- Climate control: full heating and air conditioning system ensures your drivers stay comfortable and productive in any weather.

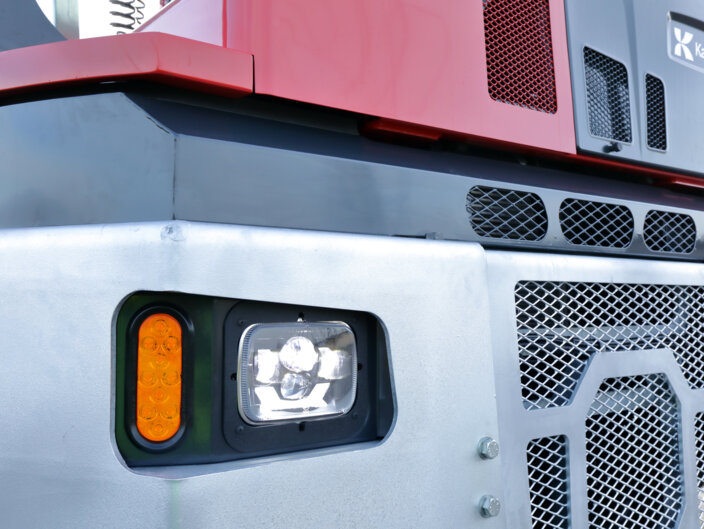

- Daylight Visibility: high-output LED lights provide better visibility than traditional halogen alternatives.
The control you need
All our terminal tractors are fitted with an electronic control system so your drivers can continually monitor their trucks performance, as knowing exactly what is going on allows your drivers to operate their trucks as safely and efficiently as possible.
From the main digital screen, they can easily access specific data on transmission and hydraulic performance, tyre pressure [requires optional Tyre Monitoring System to be fitted], individual work shifts, error codes, control breaker system for load handling and event-controlled information.
Safety as standard
For Kalmar, the safety of your drivers and maintenance staff is of critical importance, which is why our machines come with many more safety features fitted as standard than others available in the market. Here are just a few:

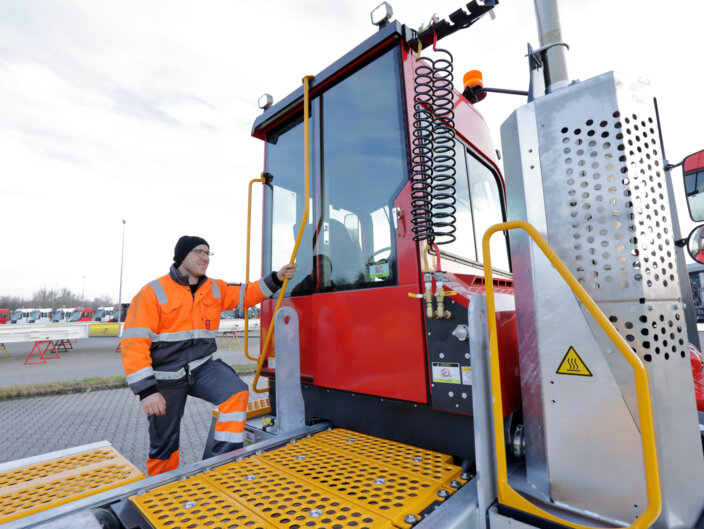

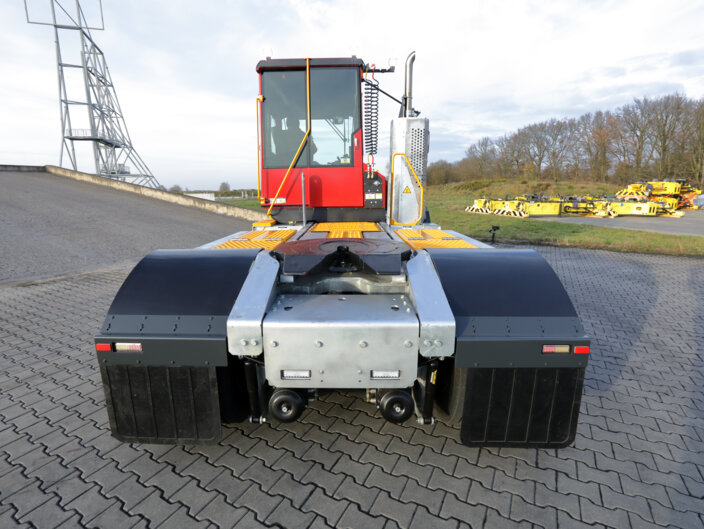

- Non-slip steps and rear access platform.

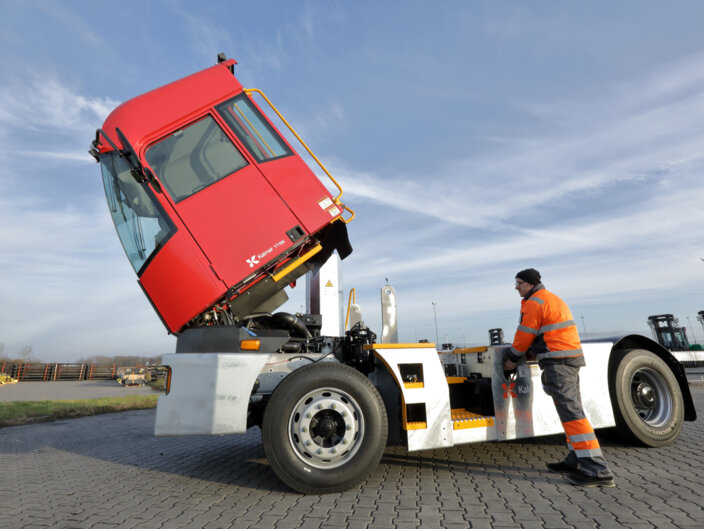

- Hydraulic tilting cab for safe engine bay access
- Trailer stops to protect the driver and cabin.
- External reversing light
- Engine and transmission protection and warning systems
- Neutral start switch, so your driver can’t start his truck while in gear.
Designed for the driver
At Kalmar, we believe that a comfortable driver is a productive driver. Our ergonomically cabin has been meticulously engineered to reduce fatigue and enhance operational precision. From the moment they step inside, your drivers will experience a workspace that is as intuitive as it is robust. Expect:
- Premium Seat: fully adjustable with three mounting positions.
- Intuitive Controls: digital display and operator panel and controls within reach.
- Precision Steering: adjustable column with a knob for effortless turns.
- Full Visibility: massive windows for 360° views.
- Total Climate Control: standard AC, heating, and fresh air filtration system.
Up to 90% less CO2 emission with HVO100 fuel
Kalmar TT7 Terminal Tractors or shunters fitted with a Cummins engine are certified to use HVO100 fuel which can reduce your carbon emission by up to 90%. If you own an older certified machine, you just need to discuss with your local Kalmar support team if your equipment needs a minor upgrade or if it is ready to start using HVO100 straight away.
An expanding range
The current TT7 Series offering of three machines will soon be expanded to include two new zero emission EV models, with a choice load carrying and battery capacities.
